SDS-max rotary hammer drill tools

D-MAX
Dustless bit (Ø 16–35 mm)
ZENTRO MAX 4
4-cutter, 4-fluted drill bit
ZENTRO MAX FL
2/4-cutter, 2-fluted drill bit
PROLINE-MAX
2-cutter standard drill bit
TH-MAX
Core cutter
HBK hammer core bit
Single-piece
HBK hammer core bit taper
Modular multi-piece (SDS-max)
D-MAX

Dustless bit with automatic drill hole cleaning

The D-MAX dustless bit from the DustCon series is the ideal solution for clean, fast drilling with high durability for larger hole diameters and work safety while drilling. Proper cleaning of the drilled hole also no longer requires the use of brushes and a blow-out device. The dustless bit reliably takes care of these work processes while drilling, as stone dust is suctioned right when it is created. The robust head geometry with active air cooling also allows for a long lifetime.

Applications
  • Drilled holes for structural connections using subsequent reinforced connection
  • Drilling anchor holes for attaching structural and secondary steel constructions
  • Work safety while drilling
Building materials
  • Concrete , Reinforced concrete , Brick , Natural stone
Characteristics
Drill bit head
  • Powerful 4-cutter
  • Two suction holes directly on the drill bit head
  • Special centering tip
  • Wear marks
  • Rebar chamfers
  • PGM-tested carbide tips
Shank / flute
  • Guide body on the shank for large diameters
  • Inner suction channel
  • Simple installation of the
  • vacuum adapter
Insertion end
  • SDS-max
16 – 35 mmD-MAX: Three-piece carbide element
ZENTRO MAX 4

4-cutter rotary hammer drill bit with 4-fluted spiral

The ZENTRO MAX 4 is a robust, aggressive powerhouse which combines a reliable head design with stable flute geometry. This results in a long lifetime, precise holes and maximum energy transfer — even in the toughest conditions.

Applications
  • Conduit hole drilling in reinforced and unreinforced concrete and masonry
  • Drilled holes for subsequent reinforcement connection
  • Drilling breakthrough holes in reinforced and unreinforced concrete for tubes and cables
  • Reinforcement of foundations during renovation
Building materials
  • Concrete , Brick , Masonry , Natural stone
Characteristics
16mm drill bit head
  • Longlife 4-cutter
  • 4x90° cutting teeth symmetry
  • Centering tip
  • Wear marks
  • Patented rebar chamfers
  • PGM-tested carbide tips
15 mm drill bit head
  • Longlife 4-cutter
  • Power Shoulder™ design
  • Stable, self-centering tip
  • Wear marks
  • Patented rebar chamfers
  • PGM-tested carbide tips
Shank / flute
  • H-flute
  • 4-fluted
Insertion end
  • SDS-max
12 – 15 mmZENTRO MAX 4: Single-piece carbide element
16 – 52 mmZENTRO MAX 4: Three-piece carbide element with Power Shoulder™ design
ZENTRO MAX FL

2-fluted rotary hammer drill bit with optimized head design

The ZENTRO MAX FL combines rapid drilling progress, especially for deep holes, with a robust drill bit. This is achieved thanks to a head geometry coordinated to the drilling diameter with 2 or 4 cutting teeth. The drilling dust is removed faster as a result. This sets the stage for rapid drilling progress.

The patented Multi-Value-FluteTM results in a long-lasting drill bit and creates plenty of room for the drilling dust thanks to its 2-fluted design.

Applications
  • Extra-long drill bit for renovation and sealing in masonry and concrete
  • Drilled holes for subsequent reinforcement connection
  • Conduit hole drilling in concrete and masonry
Building materials
  • Concrete , Brick , Masonry , Natural stone
Characteristics
Drill bit head 16 - 52 mm
  • Speed 2-cutter with Power Shoulder™ design
  • Centering tip
  • Patented rebar chamfers
  • PGM-tested carbide tips
Drill bit head 12 - 15 mm
  • Powerful 4-cutter with Power Shoulder™ design
  • Head turned 90° for optimization of drilling dust removal
  • Stable, self-centering tip
  • Wear marks
  • Patented rebar chamfers
  • PGM-tested carbide tips
Shank / flute
  • Multi-Value-Flute™ (MVF)
  • Flute design
  • 2-fluted
Insertion end
  • SDS-max
12 – 15 mmZENTRO MAX 2 FL: Speed 2-cutter with Power Shoulder™ design
16 – 52 mmZENTRO MAX FL: 4-cutter with Power Shoulder™ design

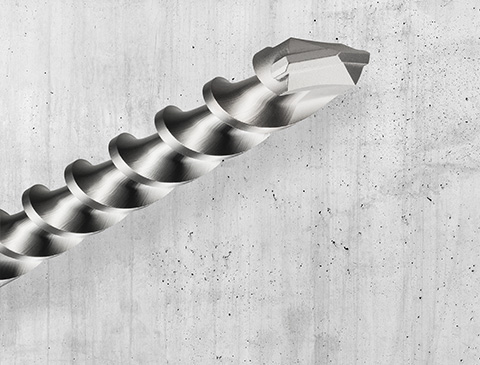

PROLINE-MAX

2-cutter rotary hammer drill bit for rapid drilling progress

The PROLINE-MAX is distinguished by its dynamic, chisel-shaped head with short transition to the large-volume flute. This shape lets it penetrate the material quickly and ensures fast drilling dust removal, even from deep drilled holes.

Applications
  • Conduit hole drilling in concrete and masonry
  • Drilling anchor holes for attaching structural and secondary steel constructions
Building materials
  • Concrete , Masonry , Natural stone
Characteristics

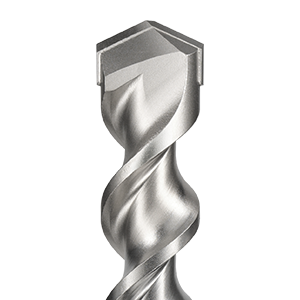

Drill bit head
  • 2-cutter
  • Chisel-shaped head
  • Carbide tip geometry with 130° cutting angle makes centering easier
  • PGM-tested carbide tips

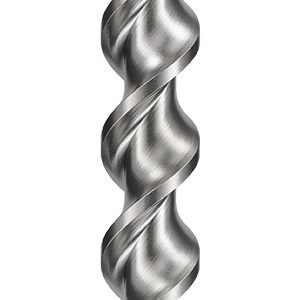

Shank / flute
  • H-flute
  • 2-fluted

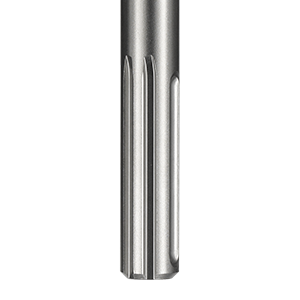

Insertion end
  • SDS-max

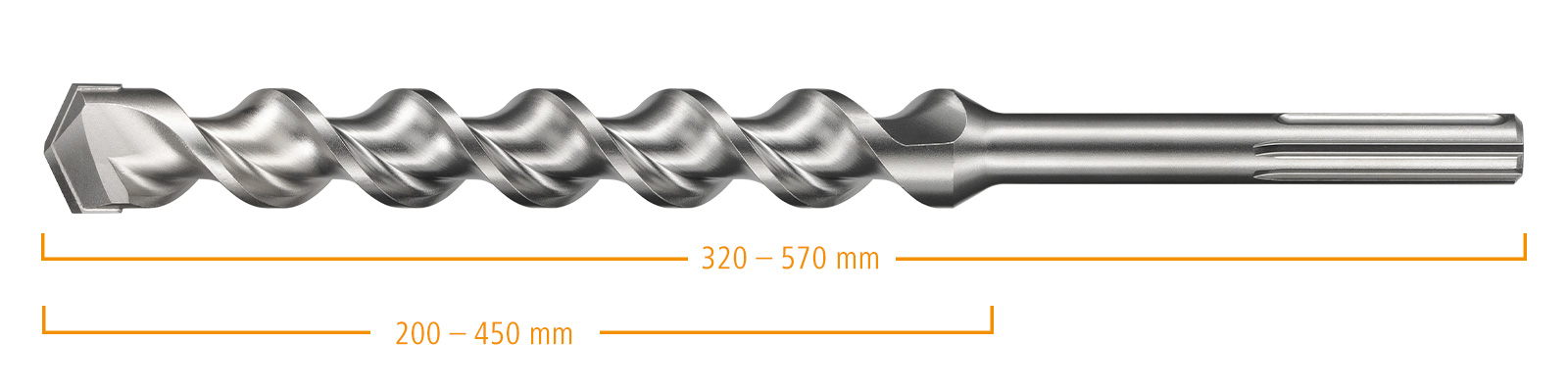

14 – 40 mmPROLINE-MAX
TH-MAX

Easy conduit hole drilling even under tough conditions

With its robust tool design and solid 3-cutter centering drill bit, the TH-MAX core cutter provides reliable and best drilling results for breakthroughs of any kind.

Developed specifically for the new generation of powerful rotary hammer drills > 11 joule, the core cutter guarantees efficient operation with a long lifetime, especially in hard materials and on rebar.

Applications
  • Conduit hole drilling in concrete and masonry
Building materials
  • Concrete , Reinforced concrete , Brick , Masonry , Natural stone
Characteristics
Drill bit head
  • 3-cutter centering drill bit
  • 3-piece outer rim design
  • Carbide teeth with special rebar chamfers
Shank / flute
  • 3-fluted
  • Solid core reinforcement
  • Single-piece
  • Conical shank
Insertion end
  • SDS-max
40 – 80 mmTH-MAX core cutter
HBK hammer core bit

For large rotary hammer drills with a high impact energy

As a single-piece tool, the HBK hammer core cutter guarantees close-fitting and precise drilling results. The centering drill bit prevents any deviation of the core bit.

Thanks to its specially designed asymmetric tooth geometry, the HBK hammer core cutter quickly proceeds through hard materials.

Applications
  • Cylindrical recesses
  • Conduit hole drilling for tubes
Building materials
  • Concrete , Brick , Masonry
Characteristics
Drill bit head
  • Replaceable centering drill bit with 2 cutting teeth
  • Asymmetrical carbide tooth arrangement
  • Sloping guide teeth and flat hammer teeth
  • Sturdy core bit body
Shank / flute
  • Core bit body with an outer flute
Insertion end
  • SDS-max
40 – 150 mmSingle-piece HBK hammer core bit
HBK hammer core bit taper

Multi-piece core bit with modular SDS-max insertion end

The modular, tapered HBK hammer core cutter in the SDS-max configuration guarantees close-fitting and exact drilling results, even for heavy rotary hammer drills and combi-drills. The centering drill bit prevents any deviation of the hammer core bit. Thanks to its specially designed asymmetrical tooth geometry, the hammer core bit works its way through hard materials quickly.

Applications
  • Cylindrical recesses
  • Conduit hole drilling for tubes
Building materials
  • Concrete , Brick , Masonry
Characteristics
Drill bit head
  • Replaceable and sturdy core bit body
  • Replaceable centering drill bit with 2 cutting teeth
  • Asymmetrical carbide tooth arrangement
  • Sloping guide teeth and flat hammer teeth
Shank / flute
  • Core bit body with an outer flute
Insertion end
  • SDS-max, variably interchangeable
40 – 125 mmTapered HBK hammer core bit
